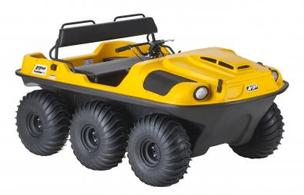

ARGO 6 x 6 750 HDi

www.NJARGO.com

Tel: +1.908-439-3002

363 County Rd 513 Califon NJ 07830 us

6x6 750 HDi Specs
Engine  4 cycle OHV V-Twin gasoline engine,electronic ignition,full pressure lubrication and oil filter, 2 year engine warranty

Model  Kohler Command Pro

Horsepower  23 (17.2 kW)

Displacement  747cc

Cooling  Air cooled

Starting  Electric

Brakes  Hydraulic

Steering  One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.

Controls  Right-hand twist grip throttle. Light switch and ignition switch.

Clutch  Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.

Transmission  ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.

Drive System  Roller chains drive machined sprockets that are spline-fit onto 1 1/4" diameter axles.Bearings are greaseable and are protected with double-sealed outer flange assemblies.

Frame  Formed steel channel construction,welded for high strength and durability. Polyester powder coated for lasting protection.

Body  Vacuum formed High Molecular Weight Polyethylene

Full Skid Plate  Standard

Load Capacity - On Land  700 lb. / 317 kg total

Load Capacity - Rear Compartment  140 lb. / 63 kg max.

Load Capacity - On Water  500 lb. / 227 kg total

Towing Capacity  1400 lb. / 635 kg

Seating Capacity  4 persons on land, 2 persons on water

Fuel Capacity  7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation based on load and operating conditions.

Speed (on land)  22 mph / 35 km per hour

Speed (on water)  3 mph / 5 km per hour

Shipping Weight  950 lb. / 431 kg

Axle Bearing Extensions  Front and Rear Standard

Instrumentation  LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light

Tires  ARGO 24 x 10.00-8 NHS

Ground Pressure  7.1 psi (13.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks

Ground Clearance Tires  9.5 inches - 240 mm

Ground Clearance Tracks  10.5 inches - 265 mm

Operating Conditions  All weather,all-terrain,-40°C to +40°C
