Argonorth

Specifications
Engine  4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty

Model  Kohler Command Pro

Horsepower  23

Displacement  747 cc

Cooling  Air Cooled

Starting  Electric

Brakes  Hydraulic

Steering  One piece ergonomic handlebar steering control with mounted brake lever. For safety and ease handling, the ARGO steering transmission provides continuous torque to all axles

Controls  Right-hand twist grip throttle and dash-mounted choke control. Light switch and ignition switch

Clutch and Transmission  Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. Planetary differential transmission with High and Low range; Forward, Neutral, Reverse.

Drive System  Roller chains drive machined sprockets that are spline-fit onto 1 1/4" diameter axles. Bearings are greasable.

Frame  Formed steel channel construction, welded for high strength and durability. Polyester powder-coated for lasting protection

Body  Vacuum formed High Molecular Weight Polyethelene

Full Skid Plate  Optional

Load Capacity - On Land  1000 lbs / 454 kg

Load Capacity - On Water  900 lbs / 409 kg

Towing Capacity  1400 lbs / 635 kg

Seating Capacity  6 persons on land / 4 on water

Fuel Capacity  7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation based on load and operating conditions.

Speed - On Land

19 mph / 30 km per hour

Speed - On Water

3 mph / 5 km per hour

Shipping Weight

1050 lbs / 476 kg

Axle Bearing Extensions

Front - Standard...Rear - Optional

LCD Digital Gauge Cluster  Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights

Tires  ARGO AT189 24 x 10.00-8NHS

Ground Pressure  2.1 psi (14.5 kPa) using tires 0.67 psi (4.6 kPA) using tracks

Operating Conditions   All weather, all terrain, -40C to +40C



Model Information
The most affordable ARGO 8x8 vehicle features great performance in difficult terrain and has excellent water crossing capabilities. Great load carrying capacity and powerful towing capabilities at an attractive price. Rubber tracks available for better traction in soft terrain or snow.

Features
Large rear cargo capacity

Long wheel base for smooth ride comfort over rough terrain

Large triple-sealed outer axle bearings

Front bearing extensions

Proven, state-of-the-art automatic continuously variable transmission with high and low range forward and reverse

Three-year limited engine warranty

Standard Equipment
Digital Gauge Cluster (speedometer, odometer, voltmeter, hour meter, tachometer, low oil pressure and parking brake reminder lights)

24" (610 cm) ARGO tires with proprietary tread design

Self-adjusting hydraulic brakes with vented discs

Electronic ignition

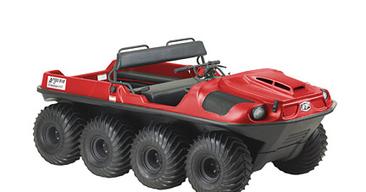

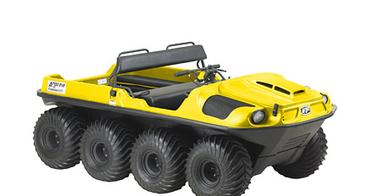

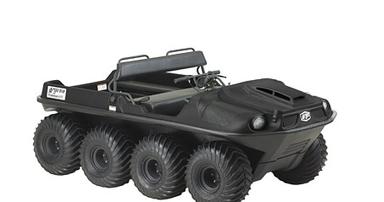

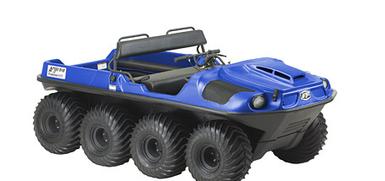

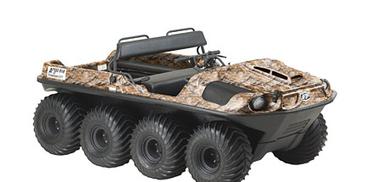

ARGO 8 x 8 (750 EFi)
