Argonorth

XT Models

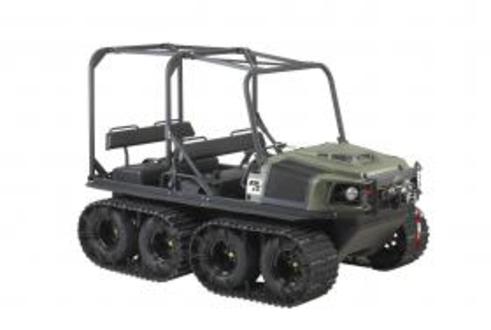

8 x 8 XT

Model Information
This 8-wheel drive amphibious off-road vehicle features an OHV V-Twin liquid cooled 748cc, 31hp Kohler Aegis LH 775 electronic fuel-injected engine

Available in tracked or non-tracked configurations

Features
Analog instrumentation (Tachometer with digital hour meter, speedometer with digital odometer, fuel gauge, volt meter, water temperature)

Premium foam-padded, hinged, front bench seat with easy access to deep storage compartment / toolbox and battery

Seating for up to four passengers

Load capacity of up to 1300 lbs on land or 1000 lbs on water

Meets all EPA and CARB "whole vehicle emission and evaporative" standards and regulations

Three-year limited engine warranty

Standard Equipment

25" ARGO tires for optimum traction, smooth ride and better water performance

Full skid plate for lower body protection

Convenience group (two 12 volt outlets, cup holders, grab handles and dual glove box)

Independent emergency / parking brake

40 amp alternator

Specifications
Engine  V-Twin 4 cycle petrol

Model  Kohler Aegis LH 775

Horsepower  31 hp (23.1kW)

Displacement  748cc (45.6 cu in)

Cooling  Liquid cooled

Starting  Electric

Brakes  Hydraulically activated disc brakes

Steering  One-piece handlebar steering. Multi-position left, center and right

Controls  Centre mount, analog dash panel, tachometer with digital hour meter, speedometer with digital odometer, fuel gauge, volt meter, water temperature

Clutch and Transmission  Continuously Variable Transmission (CVT) with heavy duty drive belt and ADMIRAL triple differential steering transmission

Final Drive System  RS60HT heavy series roller chain connects 8 axles to the ADMIRAL transmission

Frame  Powder coated, 3" tubular steel, welded construction

Body  Vacuum formed upper body, lower hull and skid plate formed from High Molecular Weight Polyethylene (HMWPE)

Load Capacity - On Land  1500 lbs. / 680 kg

Load Capacity - On Water  1000 lbs. / 454 kg

Towing Capacity  1200 lbs / 545 kg

Seating Capacity  2 persons - 4 optional

Fuel Capacity

9.5 US gallons (36 litres) providing 8 - 10 hours of operation

Speed - On Land  17 mph / 27 kph

Speed - On Water  3 mph / 5 kph

Shipping Weight  1600 lbs. (725 kg)

Tires  ARGO AT189 25x12.00-9 NHS

Axles  1.50" (38 mm) diameter axles housed in an oil filled aluminum housing

Ground Pressure Tires  7 psi (48.3 kPa) or less

Ground Pressure Optional 15" track 1.82 psi (12.4 kPa) or less

Ground Pressure Optional 18" track  1.0 psi (6.8 kPa) or less

Ground Clearance   9" (228 mm) @ centre of vehicle

Operating Conditions  All weather, all terrain, -40F to +104F (-40C to +40C)
